코리올리유량계
[ALIA] MTM-6000
02
Specification
| Model | Size | Process connection | Accuracy | Measuring range | Operation Temperature | temperature | Power supply | Pressure | Communication | Output |
Protection class |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MTM-6000 | 10 ~ 25mm | Flange type(KS, ANSI, DIN) | ±0.1% | 0.016 ~ 6 t/h | -50 ~ 125 ℃ | -40 ~ 180℃ (standard) | 24VDC or 220VAC | 78Kg/cm2(Max.) | RS485 MODBUS RTU | Analog : DC 4~20mA Frequency output(active) |
IP65 |
03

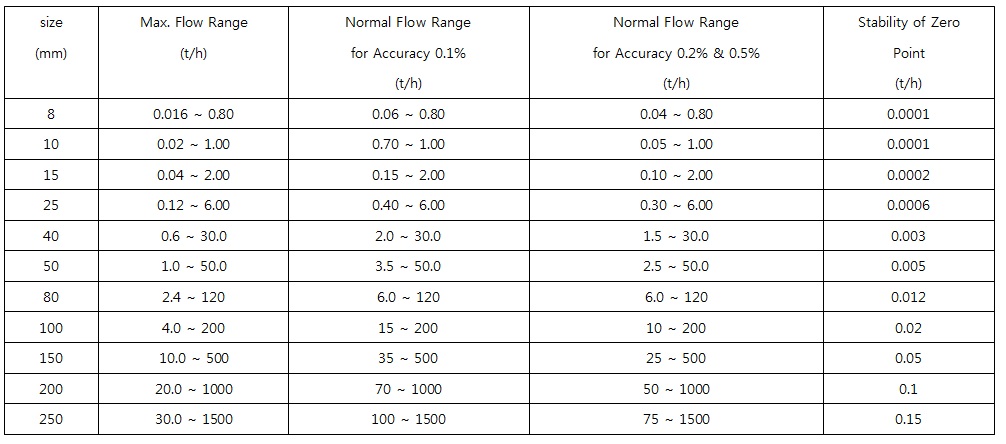

FLOW RANGE TABLE
04

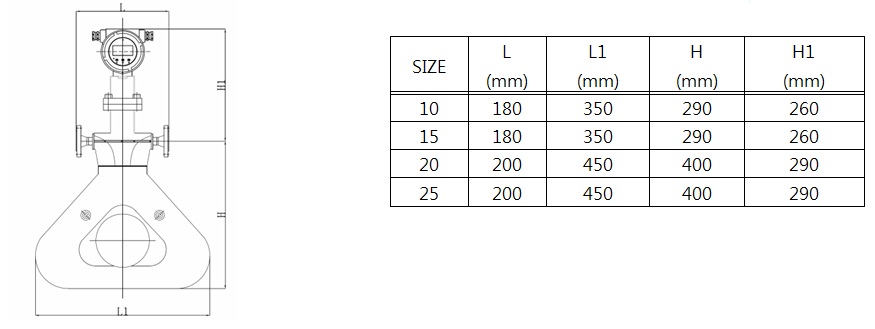

DIMENSION
05

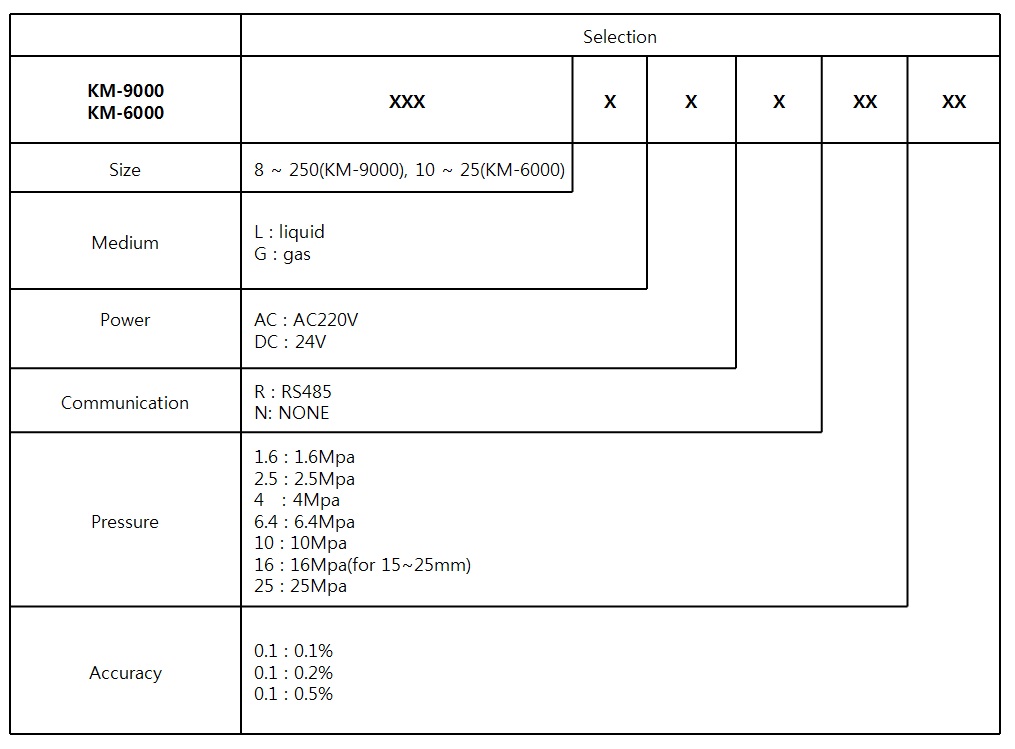

Model Selection Guide
